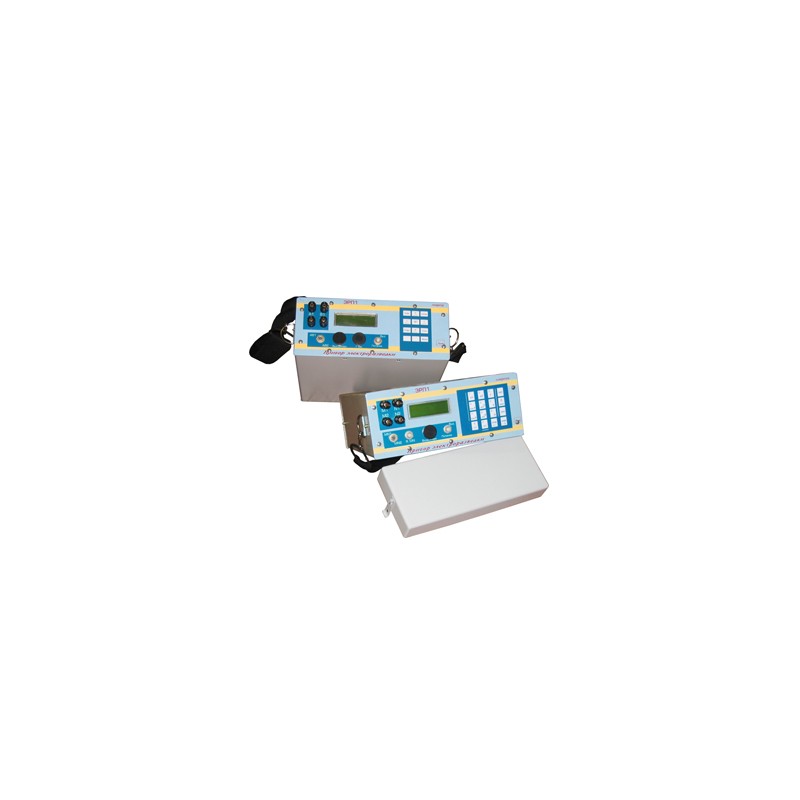

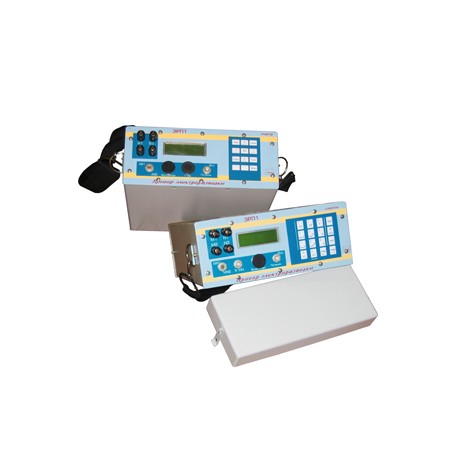

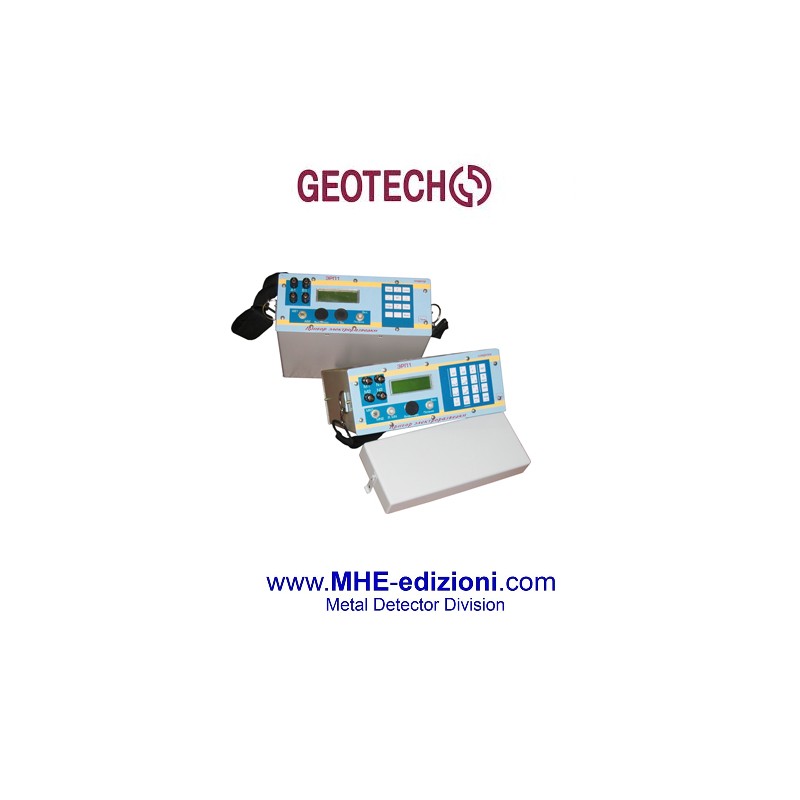

New Sale! ERP-1 DIGITAL ELECTRICAL EXPLORATION SYSTEM View larger

ERP-1 DIGITAL ELECTRICAL EXPLORATION SYSTEM

New product

ERP-1 DIGITAL ELECTRICAL EXPLORATION SYSTEM

More details

More info

Portable digital electrical exploration system ERP-1 is designed for geophysical survey performed by the following methods

Electrical exploration by DC and AC resistivity method - vertical electric sounding (VES), electric profiling, signal generator, M3, as well as measuring of the full vector of an electric field: magnetomotive force, vector survey

Natural electric field (self-potential, measuring of stray current field) method

Induced polarization (IP) with INFAZ-VP version



Applications

geological mapping

cryopedology

search and exploration of mineral deposits

geoecology

archeology

geological engineering

applied geophysics

hydrogeology

The system ERP-1 provides a combination of analog and digital signal processing To ensure accumulation in the signal processing measuring unit there are synchronized filters furnished on switched capacitors.



Features

The system ERP-1 provides a complex of electrical exploration methods that extends the range of solvable problems and improves the quality and accuracy of obtained results

The system has high noise immunity (good quality of measuring unit narrow-band analoque filter is 18), that is required for urban development, sites near electricity transmission lines, railways, etc.

Survey result, including the number of profile, survey stake, span, measurement date and time, are stored in memory

The system ERP-1 is provided with software for data transfer from measuring unit to PC and storage of measurement results in formats compatible with software package IPI2WIN (VES and VES-IP data processing and interpretation, developed by Moscow State University)

'Digital' area of signal processing contains and additional method of hardware noise reduction

Transmitter ERP-1 is supplied with two outputs, a switch tumbler for operation with different supply lines (i.e., for double-differential profiling)

Receiver ERP-1 is supplied with two inputs, a switch tumbler for operation with different receiving lines (i.e., vertical electronic sounding with 'collars')

The system is developed using technical decisions aimed at cost minimization

ERP-1 is designed and developed as equipment with the state-of-art element base, available for a wide range of home consumers
