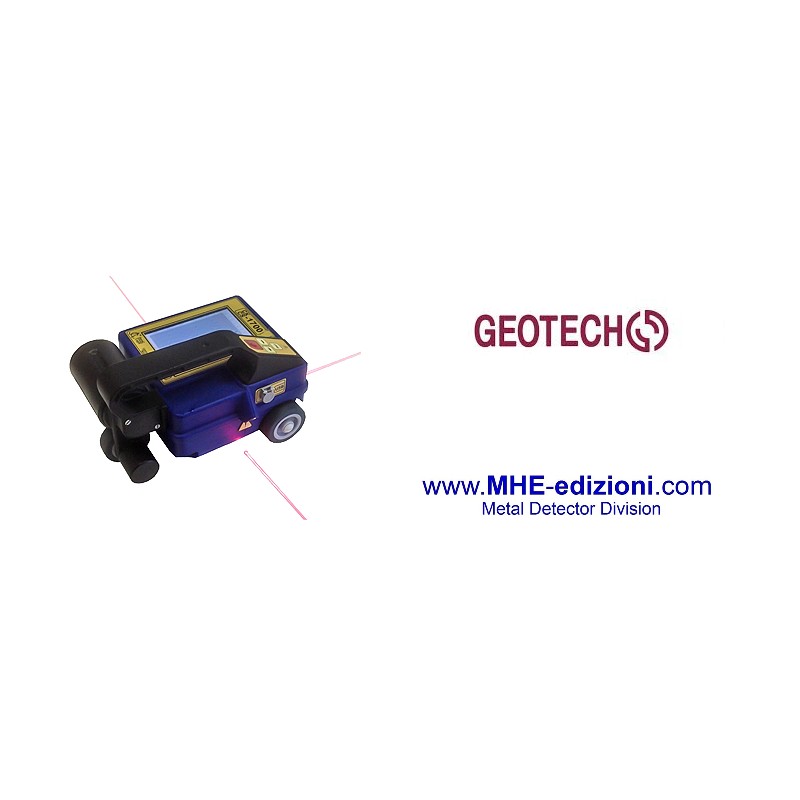

CONSTRUCTION SCAN 1700 3D GPR GEOTECH GEORADAR

New product

Construction Scan 1700 is a portable all-in one GPR solution designed for automated localizing defects in a wide variety of wood,brick and reinforcement concrete structures, at depth of 1 m.

More details

More info

Construction Scan 1700 3D is a portable all-in one GPR solution designed for automated localizing defects in a wide variety of wood,brick and reinforcement concrete structures, at depth of 1 m.

Application

•Detection and location of different defects in reinforced concrete

•Cells, cavities

•Foreign inclusions

•Cracks, layering

•Determination of reinforcement specifications

•Size

•Occurrence depth

•Degree of corrosion

•Detection of buried wiring, cables and communications lines

•Detection of plastic and metal pipelines

•Detection of heterogeneities, anomalies and other buried in solid environment (which wood, brick, reinforced concrete, building constructions, soil, etc)

•Discovering of ventilation and  communication channels

•Detection of shelters and covered-up holes

Features

•All-in-one GPR system

•5" colour display

•3D visualization

•Built-in USB interface

•Internal 2 GB Flash memory card

•Detachable SD-card

•Guiding laser

•Data collection grids (3D system)

•Built-in bar code reader

•Several languages option (Russian, English, Chinese)

•Quickly-detachable Li-io battery 15V

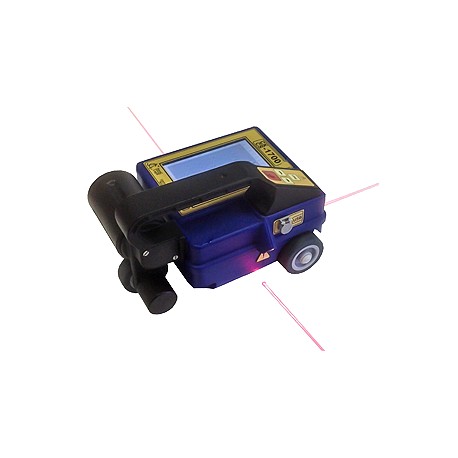

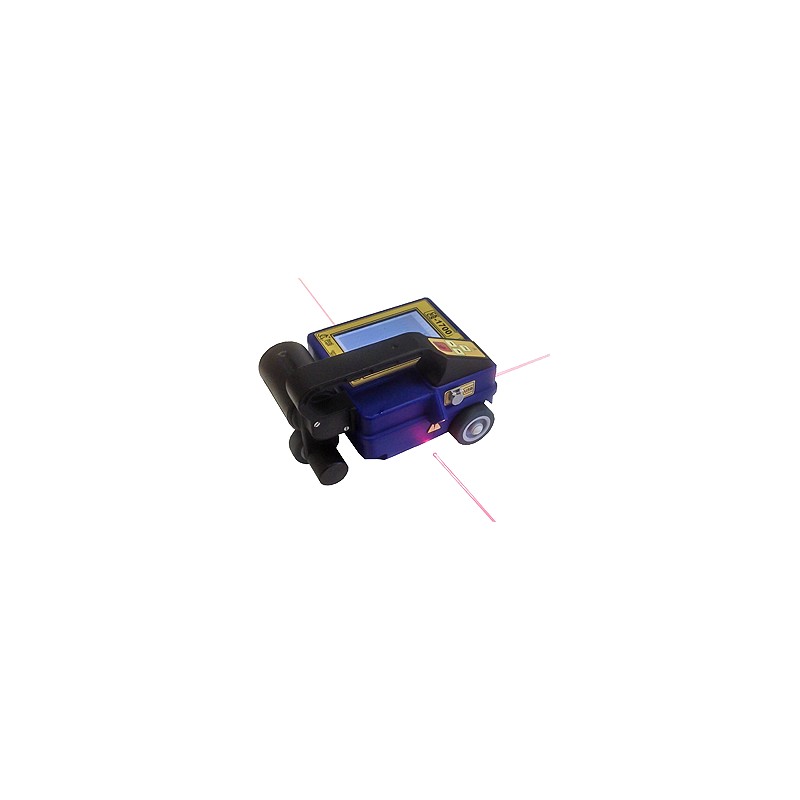

Construction Scan 1700 includes a control processing unit, LCD display, the antenna unit AB-1700 and a power supply unit  in one enclosure. The control processing unit provides processing, displaying and saving of the scanning results. CS-1700 accumulates information in the internal 2 GB Flash memory card and transfers it to the PC via the USB interface. There is a special marking rug with a bar  code for precision 3D scanning of objects.

ArmScan 3D

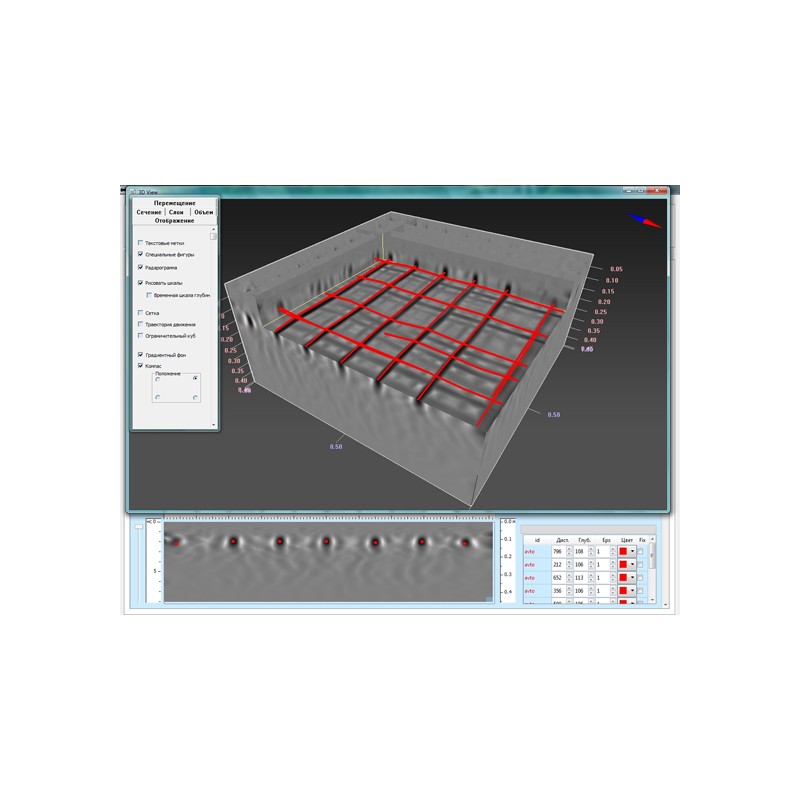

Specialized software ArmScan is a new solution for automated location of reinforcement, cables, pipes. The software allows users to build the utilities (reinforcement, pipes, etc) in 3D. the user can locate defects, different anomalies and other objects.

Characteristics:

 Penetration depth  not less than 1 m
 Resolution  not less than 30 cm
 Minimum diameter of detected semiconductor                               0.3 cm
 Rate of penetration  not less than 1 m/sec
 Antenna central frequency  1700 MHz
 Weight  1.5 kg
 Dimensions  22 x 17 x 14 cm
 Languages  English, Russian
 Temperature range  -20°C ... +50°C
 Running time  4 hours
